ECO Series

Ultra Rugged LED Panels for Billboards, Outdoor Signage, and More! Available in 6.0-20mm Pixel Pitches

Download Pdf

ECO Series Features

High Grade Protection

Built to withstand the most demanding elements, Neoti’s ECO Outdoor LED HD series is suitable for billboards, outdoor signage, and more!

Low Energy Consumption

With innovative technology, power consumption is reduced to lower the total cost of ownership.

Designed For Quick Assembly

Designed with ease in mind, cabinet sizes can vary for quick billboard installations or smaller outdoor signage to save installation expense.

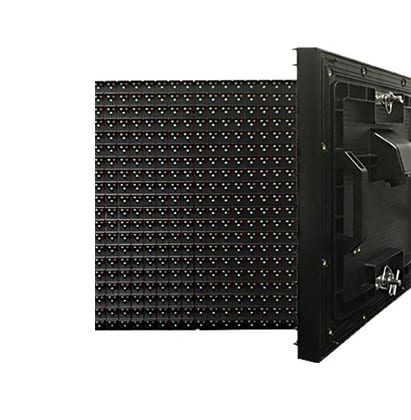

Front or Rear Installation & Service

The ECO Outdoor LED HD Series panels can be installed or maintained from either the front or the rear of the display – giving you complete flexibility.

ECO Series Specifications & Models

  • Display Properties
  • Pixel Pitch
  • Resolution
  • Brightness
  • Refresh Rate
  • Contrast
  • Color Depth
  • Viewing Angle (h/v)
  • Diode Type
  • Engineering
  • Indoor/Outdoor
  • Weight
  • Weight Metric
  • Dimensions
  • Dimensions Metric
  • Panel Power (Max/Avg)
  • Build
  • Installation & Service
  • Operating Voltage
  • Certifications
  • E10O
  • 10mm
  • 120 x 90 px
  • 7000 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 106 lbs
  • 48.1 kg
  • 50.39" x 37.8" x 6.85"
  • 1280 x 960 x 174mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • FCC, ETL, CCC
  • E16O
  • 16mm
  • 80 x 60 px
  • 8500 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 122 lbs
  • 55.3 kg
  • 50.39" x 37.8" x 6.85"
  • 1280 x 960 x 174mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • FCC, ETL, CCC
  • E20O
  • 20mm
  • 64 x 48 px
  • 8500 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 122 lbs
  • 55.3 kg
  • 50.39" x 37.8" x 6.85"
  • 1280 x 960 x 174mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • FCC, ETL, CCC
  • EB10O
  • 10 mm
  • 190 x 90 px
  • 11000 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 106 lbs.
  • 48.08 kg
  • 50.39" x 37.8 x 3.78"
  • 1280 x 960 x 96 mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • CE, ETL, FCC, RoHS
  • EB16O
  • 16 mm
  • 80 x 60 px
  • 11000 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 122 lbs
  • 55.33 kg
  • 50.39 x 37.8 x 6.85"
  • 1280 x 960 x 174 mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • CE, ETL, FCC, RoHS
  • EB20O
  • 20 mm
  • 64 x 48 px
  • 11000 nits
  • 1920 Hz
  • 5000:1
  • 16 bit
  • 120º / 60º
  • DIP
  • Outdoor
  • 122 lbs
  • 55.33 kg
  • 50.39 x 37.8 x 6.85"
  • 1280 x 960 x 174 mm
  • 541 / 216 W
  • Front or Rear
  • AC 100 ~ 240V (50 ~ 60Hz)
  • CE, ETL, FCC, RoHS
