UHD89 LED Series

Ultra High Definition, Direct-View LED Displays, Available in 0.9-3.7mm Pixel Pitches

Download Pdf

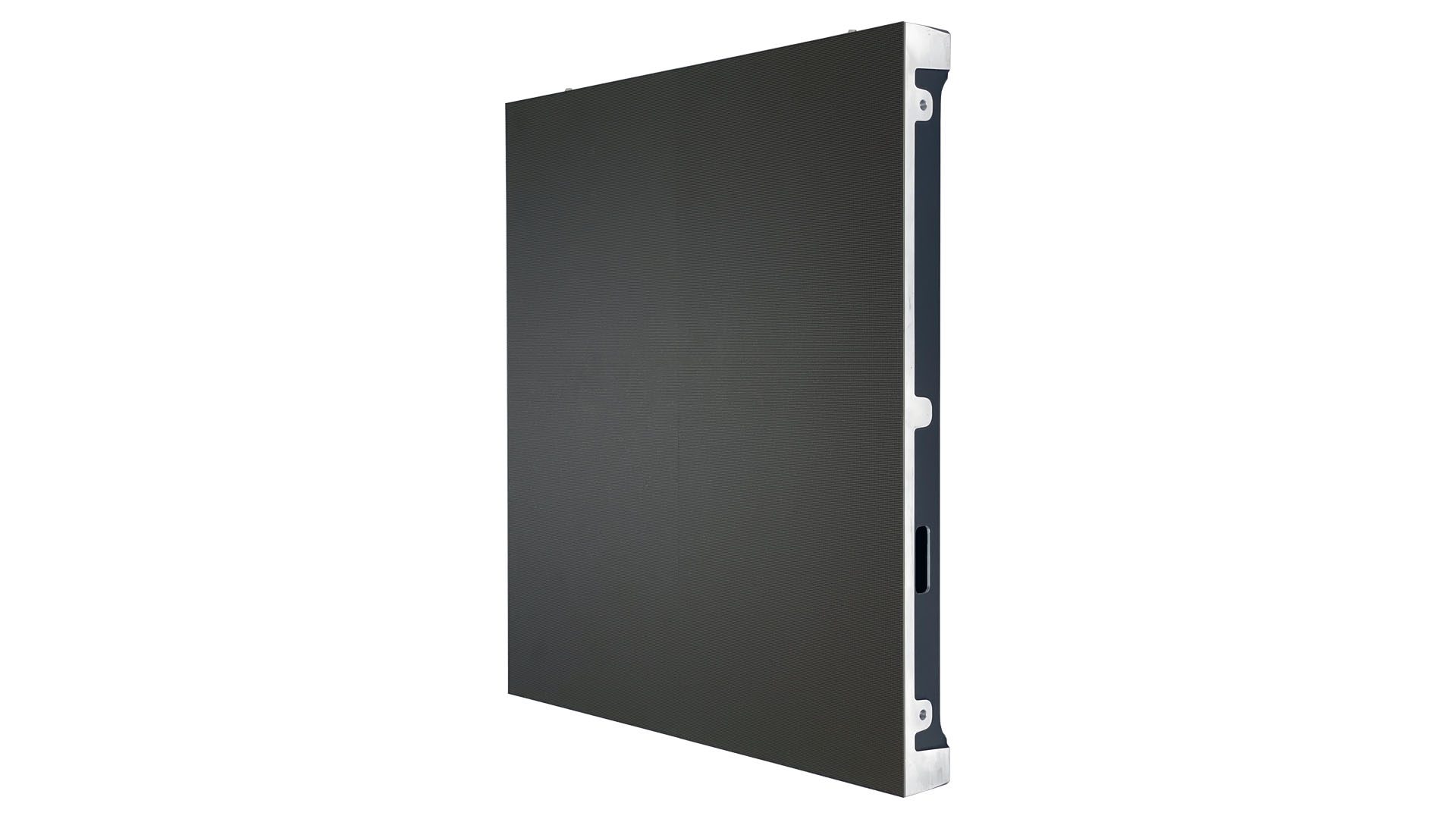

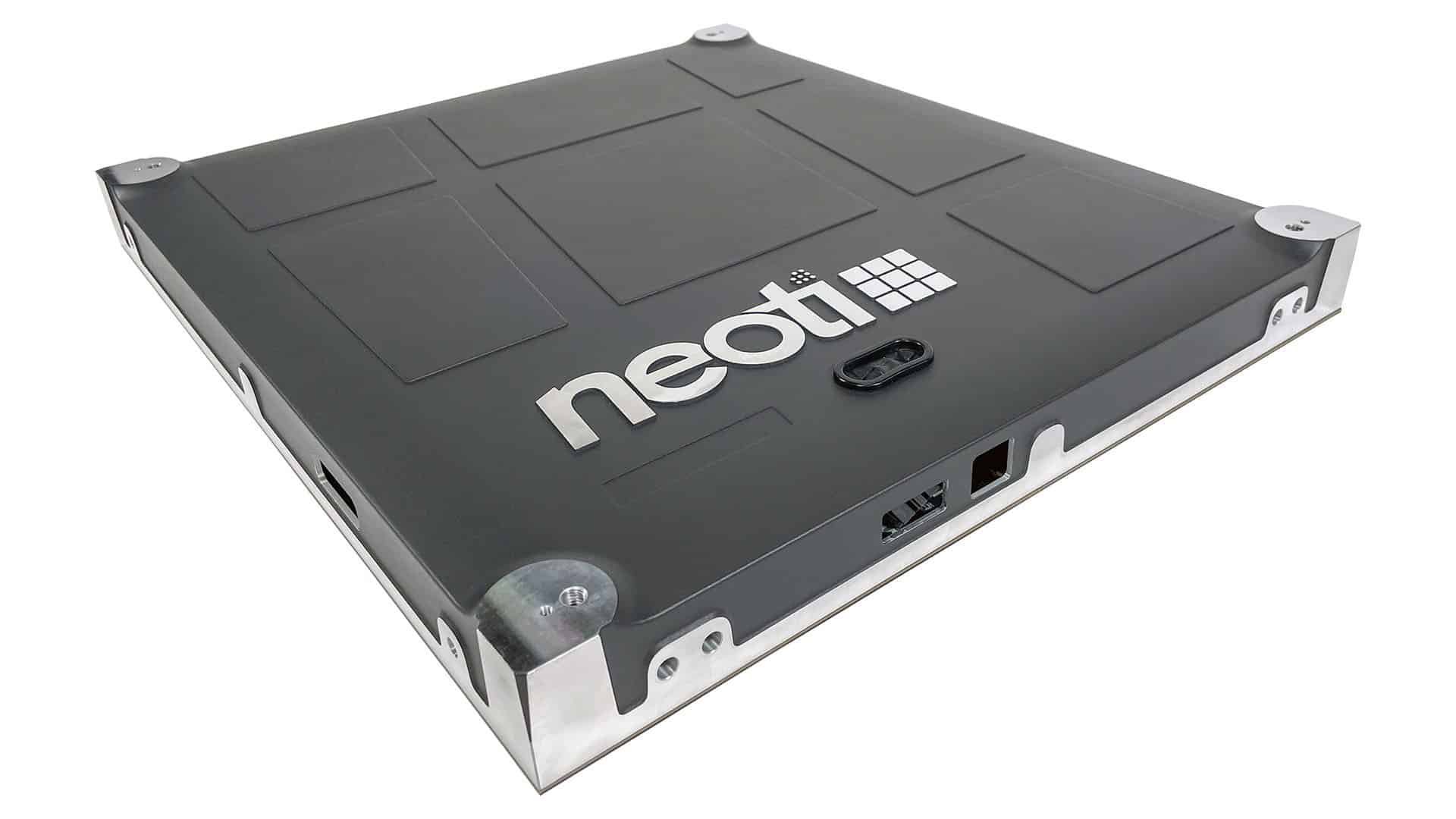

Neoti UHD89 back front

UHD89 Series Features

8:9 Cabinet Size

More flexibility in sizing allows for both 16:9 designs as well as creative layouts.

Tighter Curves

For faceted-curve displays, the unique 8:9 width allows for tighter curves with a radius as tight as 18′-9″.

Smoother Display + Optional Protection

With up to 60% fewer seams than traditional narrow pixel pitch displays and optional impact protection, the UHD89 produces a brilliant display for any indoor environment.

Faster Installation

Because of the UHD89 unique size, fewer cabinets are needed for displays, resulting in quicker installations.

UHD89 Series Specifications & Models

  • Display Properties
  • Pixel Pitch
  • Resolution
  • Brightness
  • Refresh Rate
  • Contrast
  • Color Depth
  • Viewing Angle (h/v)
  • Diode Type
  • Engineering
  • Indoor/Outdoor
  • Operating Temperature
  • Operating Humidity
  • Environment Rating
  • Weight
  • Weight Metric
  • Dimensions
  • Dimensions Metric
  • Panel Power (Max/Avg)
  • Build
  • Installation & Service
  • Operating Voltage
  • Certifications
  • UHD89/0.9
  • 0.94mm
  • 512x576 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 18 bit
  • 160º / 160º
  • MiniLED 4in1
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.2
  • 1.25mm
  • 384x576 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1010
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.4
  • 1.49mm
  • 320x360 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1212
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.8
  • 1.87mm
  • 256x288 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1515
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/2.5
  • 2.5mm
  • 192x216 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 2121
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/3.7
  • 3.75mm
  • 128x144 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 2121
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 15.4 lbs
  • 7 kg
  • 18.89″ x 21.26″
  • 480 x 540mm
  • 650/150 W/sqm
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/0.9S
  • 0.94mm
  • 512x288 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 18 bit
  • 160º / 160º
  • MiniLED 4in1
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.2S
  • 1.25mm
  • 384x216 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1010
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.4S
  • 1.4mm
  • 320x180 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1212
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/1.8S
  • 1.8mm
  • 256x144 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 1515
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/2.5S
  • 2.5mm
  • 192x108 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 2121
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
  • UHD89/3.7S
  • 3.75mm
  • 128x72 px
  • 800 nits
  • 3840 Hz
  • 8000:1
  • 16 bit
  • 160º / 160º
  • SMD 2121
  • Indoor
  • -13° ~ + 104° F
  • 10 ~ 80% RH
  • IP5x Indoor
  • 9 lbs
  • 4.08 kg
  • 18.89" x 10.63" x 2.13"
  • 480 x 270 x 54mm
  • 84/19 W
  • Front
  • AC 100 ~ 240V
  • FCC, ETL
